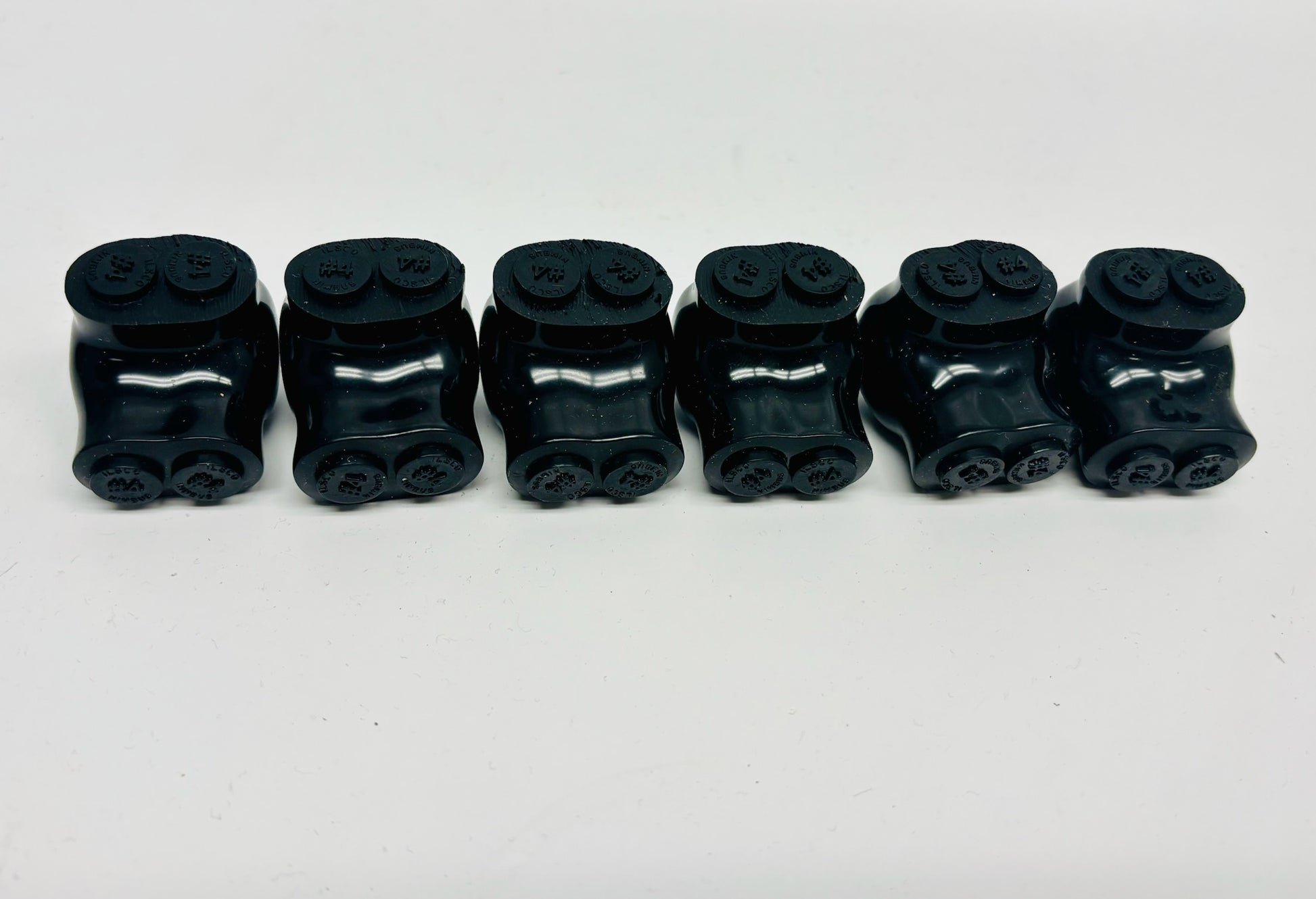

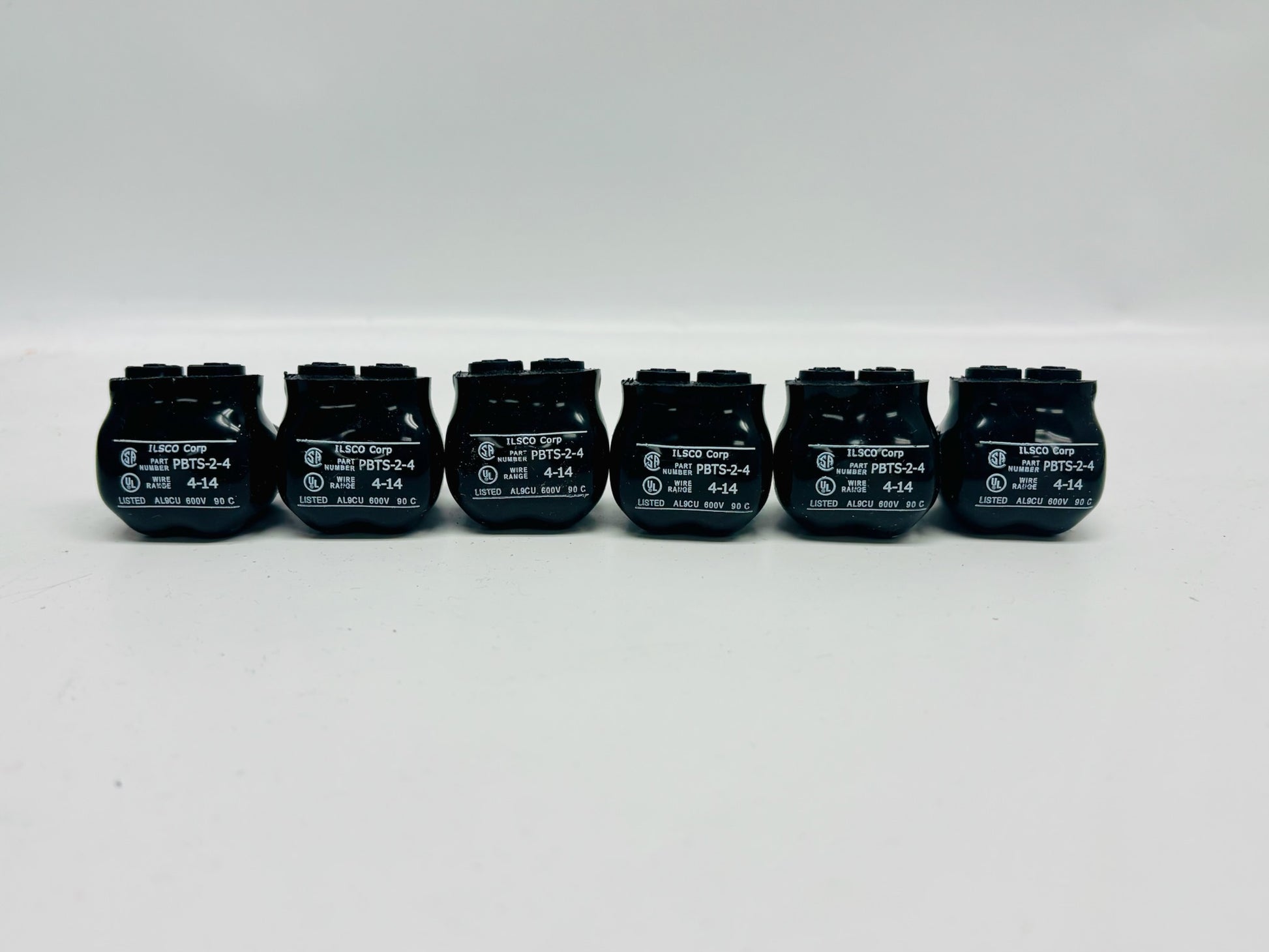

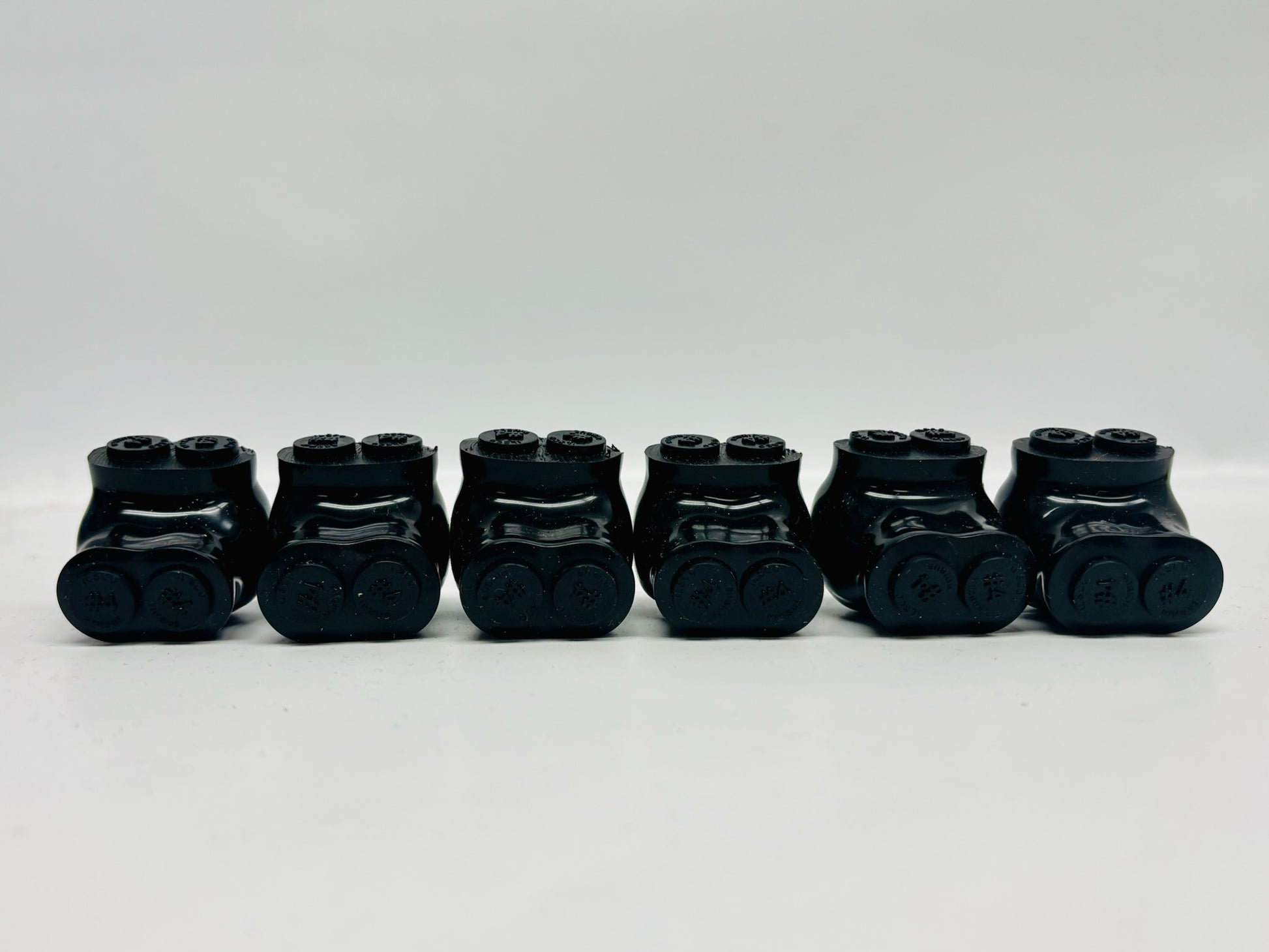

6Pk ILSCO PBTS-2-4 4–14 AWG Insulated Multi-Tap Connector

The ILSCO PBTS-2-4 is an insulated multi-tap electrical connector used to branch or tap electrical conductors in power distribution systems. It allows two conductors to be connected to a single main conductor without splicing.

The connector is dual-rated for use with copper and aluminum wire and features an aluminum body with high-dielectric insulation for electrical and environmental protection. It is pre-filled with an oxide-inhibiting compound to help prevent corrosion and maintain a reliable electrical connection.

It accepts conductors ranging from 14 AWG to 4 AWG, is rated for up to 600 volts, and typically supports currents up to approximately 95 amps depending on conductor size. Installation is performed using set screws tightened with a hex key, making it suitable for use in panels, junction boxes, and other electrical enclosures.
