ambient light levels monitored by a wireless photo sensor

occupancy state monitored by a wireless occupancy sensor

switch action from a wireless wall switch

gateway control implementing scheduled or demand

response events

The controller will fade lights up or down on a switch ON or OFF event. Closed and open loop dimming control is available for daylight harvesting applications. With only occupancy sensors linked to the controller, the sensor will automate the lights both ON and OFF. Alternately, in vacancy sensor mode the controller will assume manual- ON, auto-OFF operation. A photo-inhibit feature will ignore Partial-ON lighting with occupancy when the natural light level monitored by the light sensor is above the day-lighting set point.

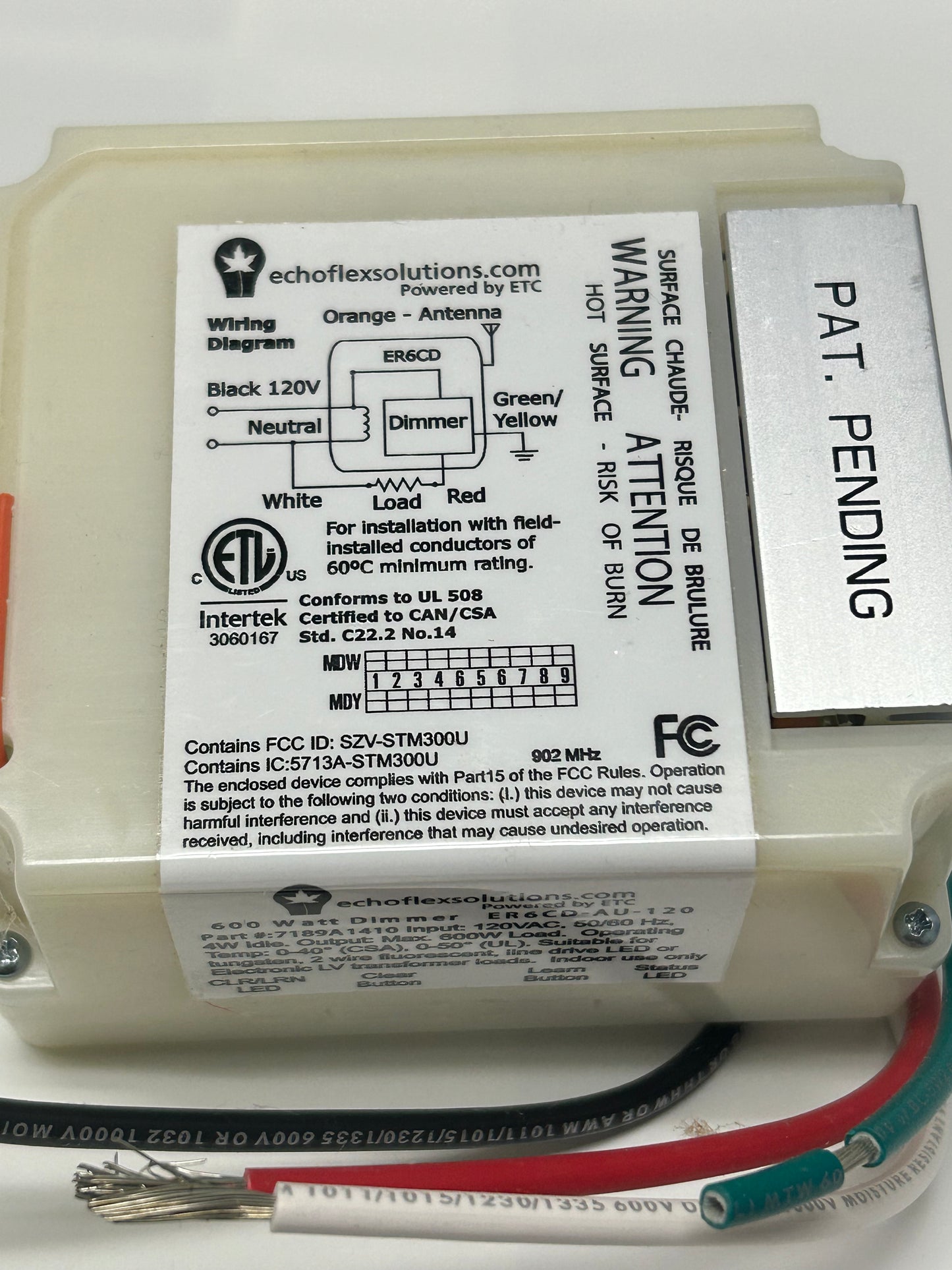

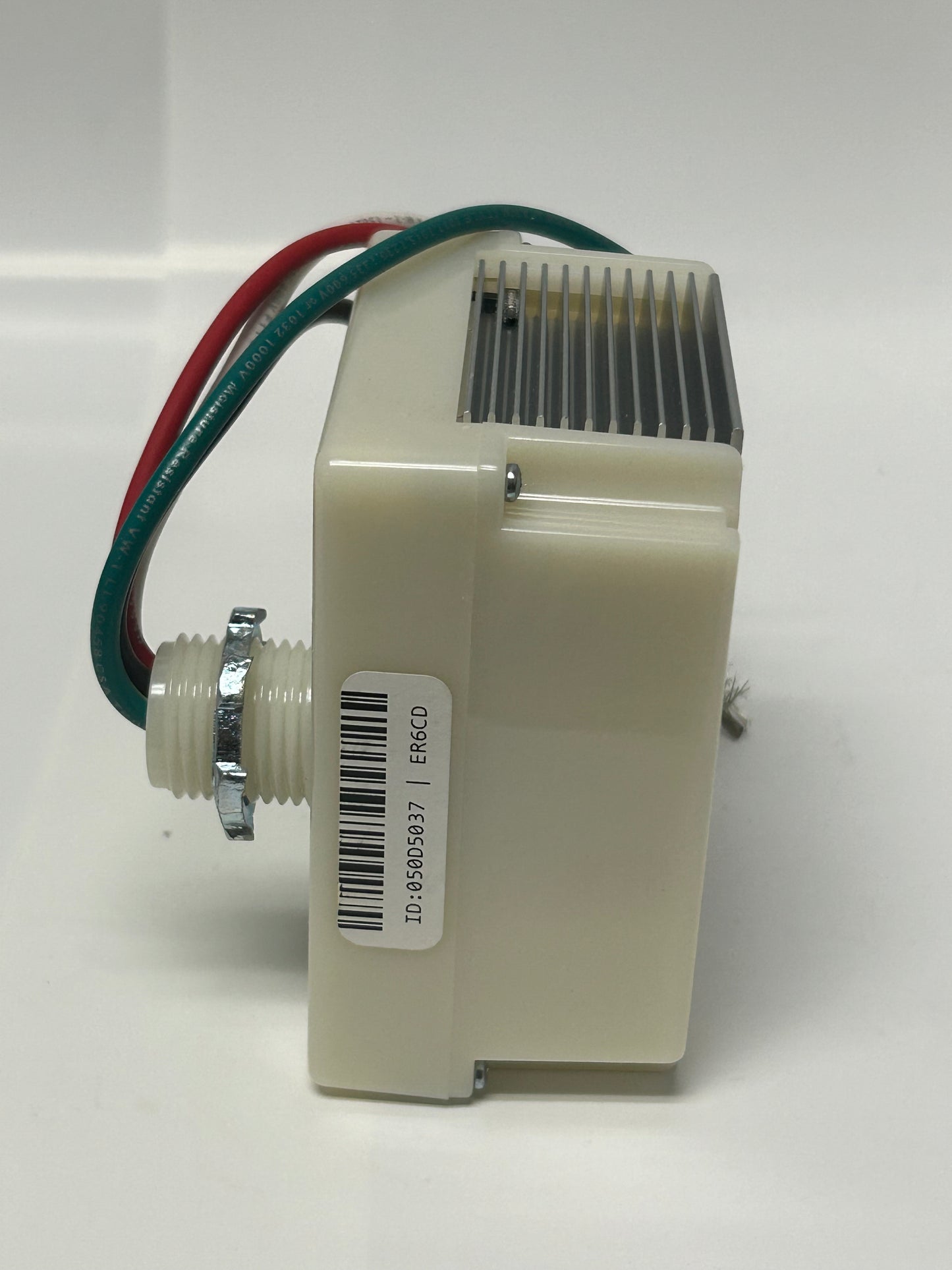

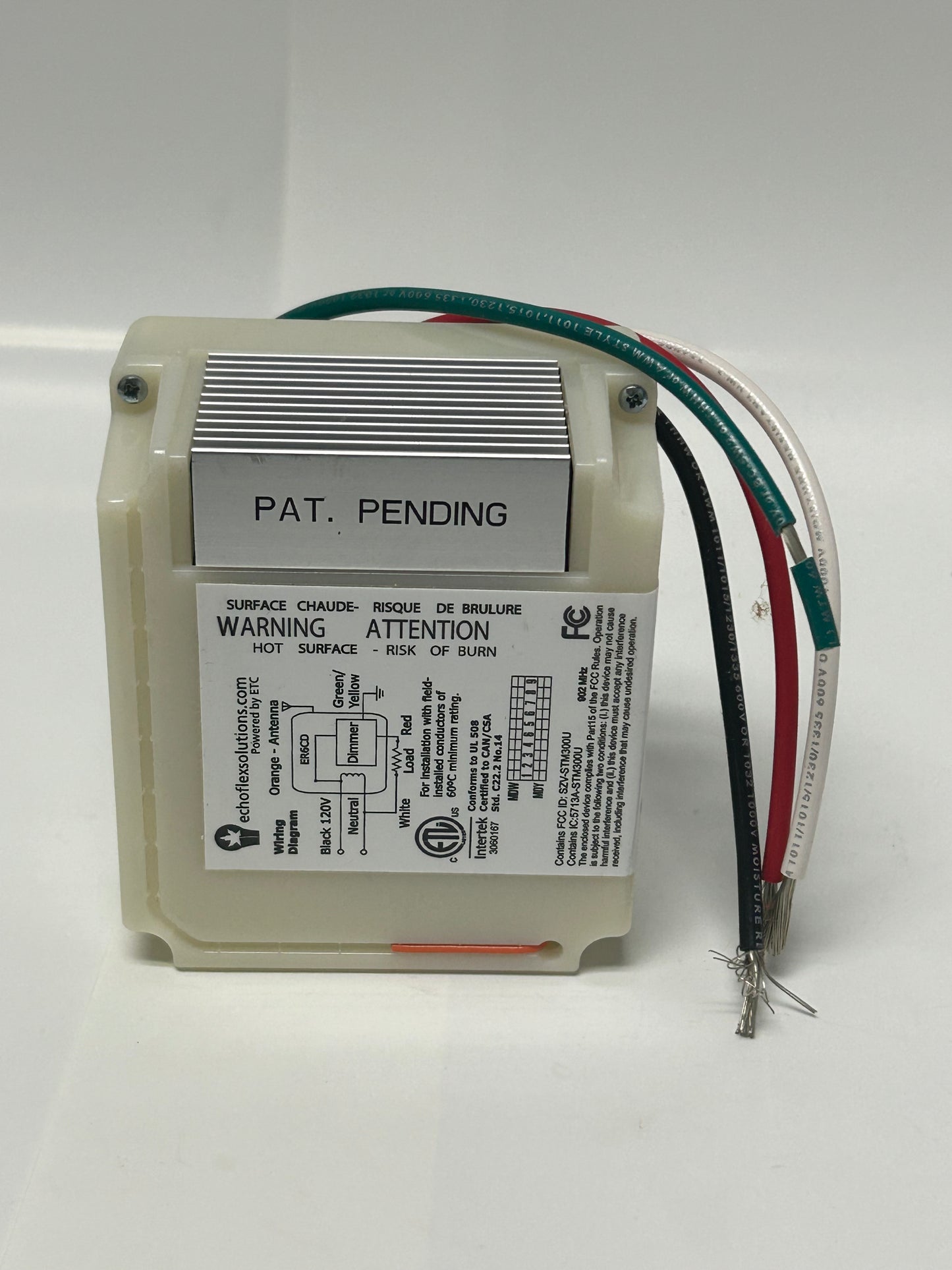

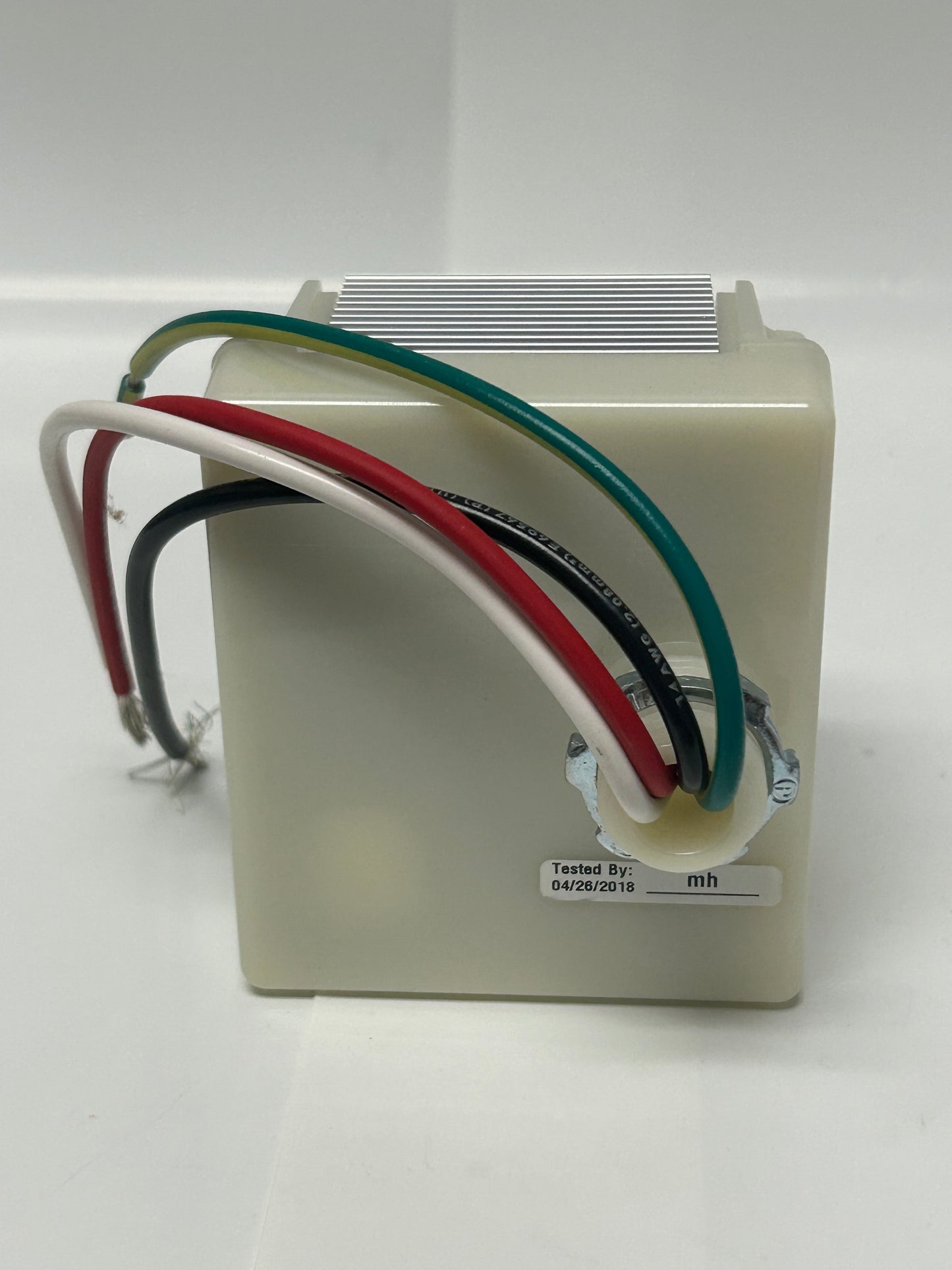

The ER6CD offers central command support to integrate with Building Management Systems gateways. The controller is Range Confirmation® compatible, working with all Echoflex sensors equipped with the Range Confirmation® feature to provide visual feedback of a linked sensors signal strength for optimal sensor placement.

Echoflex offers pre-linking and pre-commissioning on all products sold as a system through Echoflex. In addition to this service, Echoflex provides two methods of configuring and verifying controller operation once installed on-site:

1. Use the linked sensors and Simple TapTM to make quick changes to individual controllers.

2. To access the full menu of configuration parameters, Echoflex’s Garibaldi software is a PC based tool that includes hands-free commissioning.
