REC375TP2SM 375W Monocrystalline Solar Panel – REC TwinPeak 2S Mono 72 Series

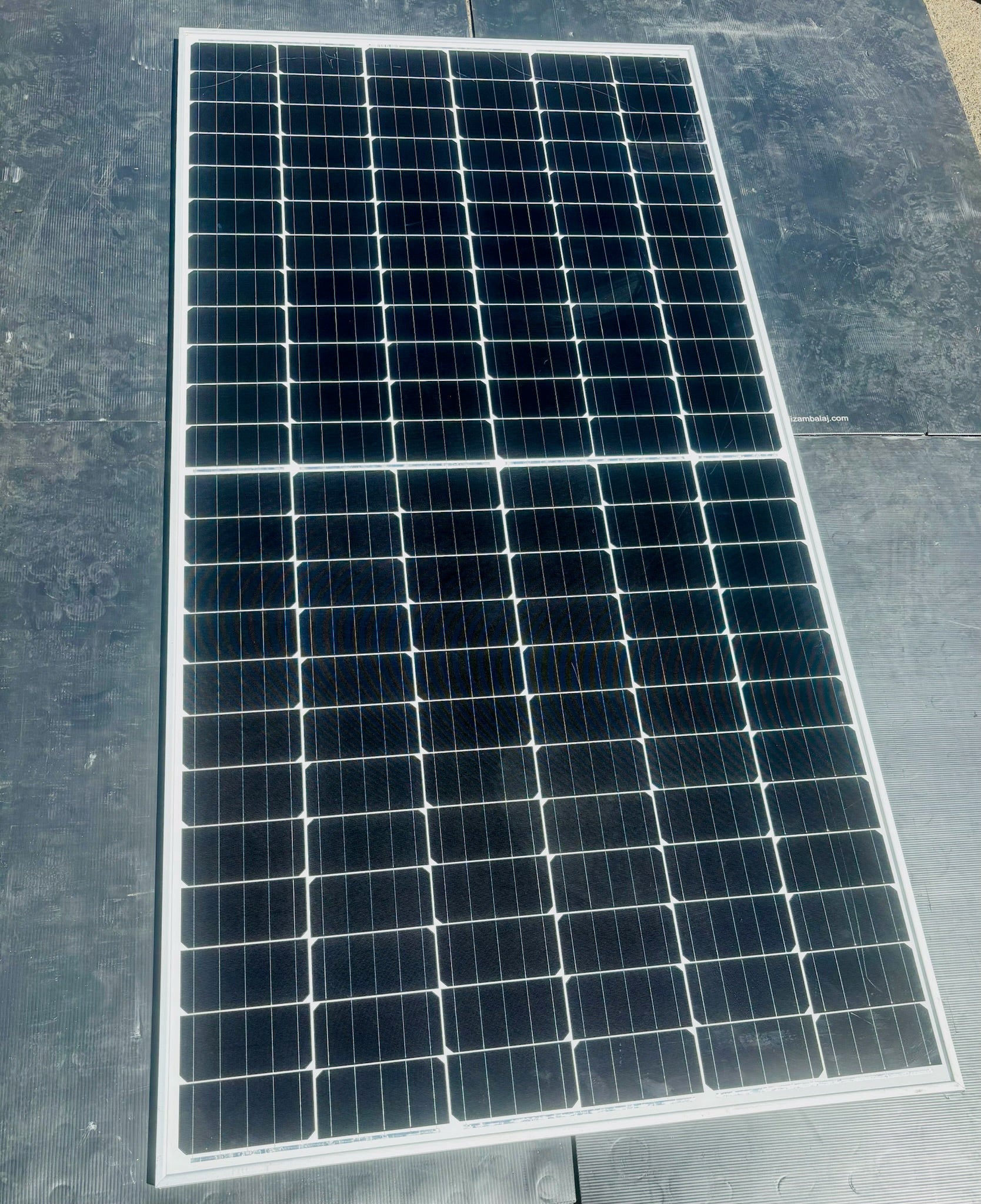

The REC375TP2SM is a high-performance 375W monocrystalline solar panel from the REC TwinPeak 2S Mono 72 series, designed for residential, commercial, and large-scale photovoltaic installations. It features 144 half-cut monocrystalline PERC cells arranged in a 6×24 configuration, improving power output, reducing electrical losses, and enhancing reliability compared with traditional full-cell modules.

The module delivers up to 18.7% efficiency and uses durable construction materials, including 3.2 mm anti-reflective solar glass, an anodized aluminum frame, and an IP67-rated junction box. The panel is engineered for demanding outdoor environments with strong mechanical load resistance and long-term energy performance.

Rated Power: 375W
Cell Type: Monocrystalline PERC half-cut cells
Cell Configuration: 144 cells (6×24)
Module Efficiency: 18.7%
Maximum Power Voltage (Vmp): 40.1V
Maximum Power Current (Imp): 9.36A
Open Circuit Voltage (Voc): 48.0V
Short Circuit Current (Isc): 9.96A
Maximum System Voltage: 1000V / 1500V DC (model dependent)
Maximum Series Fuse Rating: 25A
Front Glass: 3.2 mm tempered anti-reflective glass
Backsheet: High-resistant polymer construction
Frame: Anodized aluminum
Junction Box: IP67 rated
Connector: Tonglin compatible connector
Warranty: 20-year product warranty and 25-year linear power output warranty

Measurements According to Online Research:

Length: 2005 mm (78.9 in)
Width: 1001 mm (39.4 in)
Thickness: 30 mm (1.18 in)
Weight: 22 kg (48.5 lb)
